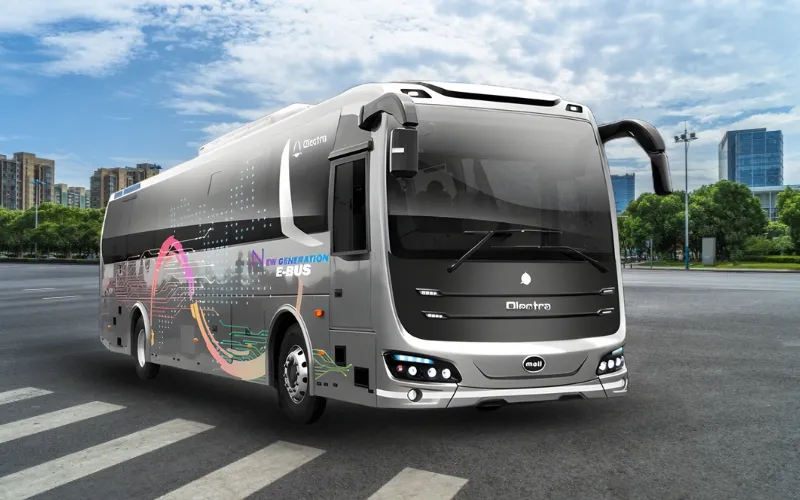

CX2 Electric Coach
Rs. 1.8 – 2.0 Crore
Specifications & Features
Specifications
Features
Dimensions and weight
• GVM: 19,000 kg
• Overall length: 12,000 mm
• Overall width: 2550 mm
• Overall height: 3560 mm
• Floor height: 1175 mm
• Seating capacity: 35–45 + Driver
• Overall length: 12,000 mm
• Overall width: 2550 mm
• Overall height: 3560 mm
• Floor height: 1175 mm
• Seating capacity: 35–45 + Driver
Chassis and powertrain
• Monocoque chassis with dual in‑wheel drive
• Maximum power: 360 kW
• Maximum torque: 3000 Nm
• Transmission: Automatic
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 295/80 R22.5
• Kneeling mechanism: No
• Maximum power: 360 kW
• Maximum torque: 3000 Nm
• Transmission: Automatic
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 295/80 R22.5
• Kneeling mechanism: No
Battery and charging
• Battery type: Lithium Iron Phosphate (LFP)
• Range: Up to 300 km per charge
• Charging time: 3–4 hours
• Charging mode: DC charging
• Input voltage: 415 V AC (3‑phase)
• Input current: 300 A
• Cable length: 4.5 m
• Charger dimensions: 750 × 800 × 2050 mm
• Charger net weight: ~395 kg
• Housing protection: IP55
• Battery cooling: Integrated cooling system
• Battery safety: Automatic fire extinguisher, leakage sensors, temperature sensors
• Battery management system: Optimal performance ensured
• Range: Up to 300 km per charge
• Charging time: 3–4 hours
• Charging mode: DC charging
• Input voltage: 415 V AC (3‑phase)
• Input current: 300 A
• Cable length: 4.5 m
• Charger dimensions: 750 × 800 × 2050 mm
• Charger net weight: ~395 kg
• Housing protection: IP55
• Battery cooling: Integrated cooling system
• Battery safety: Automatic fire extinguisher, leakage sensors, temperature sensors
• Battery management system: Optimal performance ensured
Performance
• Max speed: 100 km/h (with speed limiting device)
• Acceleration: 1.57 m/s² (0–30 km/h)
• Electrical regeneration: Available
• Low energy consumption per km
• Acceleration: 1.57 m/s² (0–30 km/h)
• Electrical regeneration: Available
• Low energy consumption per km
Bus body
• Body description: AIS 052 compliant
• Air conditioner: Available
• Door: Single door, manually openable
• UBS II standard compliance
• Air conditioner: Available
• Door: Single door, manually openable
• UBS II standard compliance
Safety Systems
• Short circuit protection
• Surge protection
• Leakage protection
• Overload protection
• Fire‑proof batteries and electric powertrain
• Automatic fire extinguisher in battery pack
• Electricity leakage sensors for batteries and high‑tension wires
• Surge protection
• Leakage protection
• Overload protection
• Fire‑proof batteries and electric powertrain
• Automatic fire extinguisher in battery pack
• Electricity leakage sensors for batteries and high‑tension wires
CX2 Electric Coach Comparison with Similar Buses
| Model |
 Olectra v2 Electric Bus |
 Olectra iX Electric Bus |
 Olectra X2 Electric Bus |
Olectra CX2 Electric Coach |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 1.2 – 1.4 Crore | 1.4 – 1.6 Crore | 1.6 – 1.8 Crore | 1.8 – 2.0 Crore |
| Fuel Type | Electric | Electric | Electric | Electric |
| Seat | 25 | 36 | 40 | 46 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | Luxury |
| Action | Compare | Compare | Compare | Compare |
