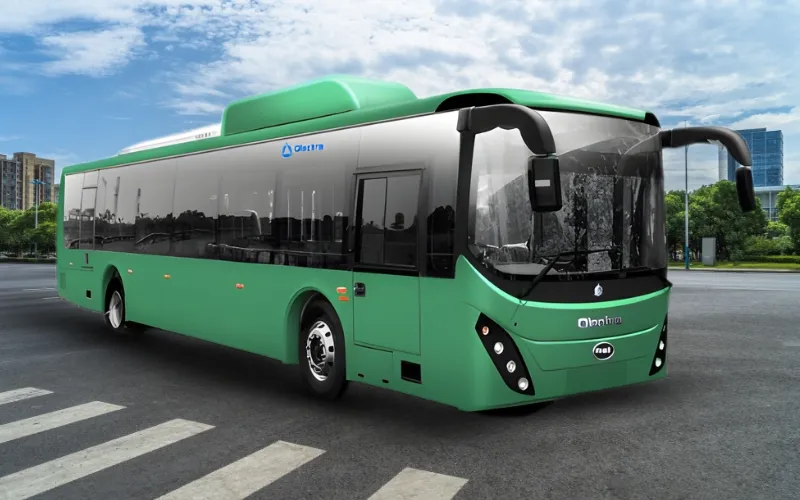

X2 Electric Bus
Rs. 1.6 – 1.8 Crore
Specifications & Features
Specifications
Features
Dimensions and weight
• GVM: 18,000 kg
• Overall length: 12,000 mm
• Overall width: 2520 mm
• Overall height: 3340 mm
• Floor height: 400 mm
• Seating capacity: 39 + Driver
• Overall length: 12,000 mm
• Overall width: 2520 mm
• Overall height: 3340 mm
• Floor height: 400 mm
• Seating capacity: 39 + Driver
Chassis and powertrain
• Monocoque chassis with dual in‑wheel drive
• Maximum power: 180 kW
• Maximum torque: 800 Nm
• Transmission: Automatic
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 295/80 R22.5
• Kneeling mechanism: Yes
• Maximum power: 180 kW
• Maximum torque: 800 Nm
• Transmission: Automatic
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 295/80 R22.5
• Kneeling mechanism: Yes
Battery and charging
• Lithium Iron Phosphate (LFP) battery
• Range: Up to 300 km per charge
• Charging time: 4–5 hours
• Charging mode: AC charging ≤ 80 kW
• Input voltage: 415 V AC (3‑phase)
• Input current: 300 A
• Cable length: 4.5 m
• Charger dimensions: 750 × 800 × 2050 mm
• Charger net weight: ~395 kg
• Housing protection: IP55
• Battery cooling system: Integrated
• Battery safety: Automatic fire extinguisher, leakage sensors, temperature sensors
• Battery management system: Optimal performance ensured
• Range: Up to 300 km per charge
• Charging time: 4–5 hours
• Charging mode: AC charging ≤ 80 kW
• Input voltage: 415 V AC (3‑phase)
• Input current: 300 A
• Cable length: 4.5 m
• Charger dimensions: 750 × 800 × 2050 mm
• Charger net weight: ~395 kg
• Housing protection: IP55
• Battery cooling system: Integrated
• Battery safety: Automatic fire extinguisher, leakage sensors, temperature sensors
• Battery management system: Optimal performance ensured
Performance
• Max speed: 70 km/h (with speed limiting device)
• Acceleration: 0–30 km/h < 10.5 s
• Electrical regeneration: Available
• Low energy consumption per km enabled by in‑built motor
• Acceleration: 0–30 km/h < 10.5 s
• Electrical regeneration: Available
• Low energy consumption per km enabled by in‑built motor
Bus Body
• AIS 052 compliant body
• Air conditioner: Available
• Door: Single door, manually openable
• UBS II standard compliance
• Air conditioner: Available
• Door: Single door, manually openable
• UBS II standard compliance
Safety Systems
• Short circuit protection
• Over‑temperature protection
• Lightning protection
• Fire‑proof batteries and electric powertrain
• Automatic fire extinguisher in battery pack
• Electricity leakage sensors for batteries and high‑tension wires
• Over‑temperature protection
• Lightning protection
• Fire‑proof batteries and electric powertrain
• Automatic fire extinguisher in battery pack
• Electricity leakage sensors for batteries and high‑tension wires
