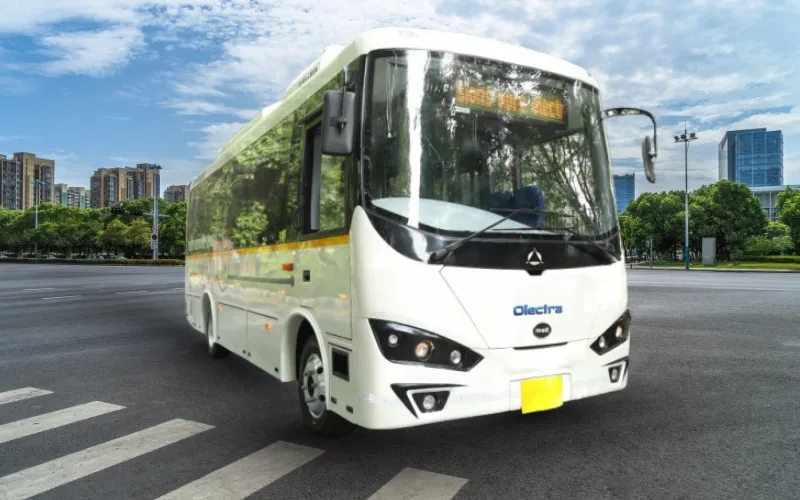

v2 Electric Bus
Rs. 1.2 – 1.4 Crore
Specifications & Features
Specifications
Features
Dimensions and weight
• GVM: 9500 kg
• Overall length: 7605 mm
• Overall width: 2165 mm
• Overall height: 3022 mm
• Wheelbase: 3200 mm
• Ground clearance: 185 mm
• Seating capacity: 16–24 + Driver
• Overall length: 7605 mm
• Overall width: 2165 mm
• Overall height: 3022 mm
• Wheelbase: 3200 mm
• Ground clearance: 185 mm
• Seating capacity: 16–24 + Driver
Chassis and powertrain
• Maximum power: 180 kW
• Maximum torque: 1500 Nm
• Transmission: Automatic
• Chassis: Monocoque construction
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 215/75 R17.5
• Maximum torque: 1500 Nm
• Transmission: Automatic
• Chassis: Monocoque construction
• Brake system: Disc brakes with ABS/EBS
• Steering: Power‑assisted
• Suspension: Front and rear air suspension
• Tyres: 215/75 R17.5
Battery and charging
• Battery type: Lithium Iron Phosphate (LFP)
• Range: Up to 150 km per charge
• Charging time: 3–4 hours (fast charging)
• Charging adapter: 180 kW, 3‑phase AC, ground‑mounted
• Input voltage: 415 V AC
• Input current: 300 A
• Cable length: 4.5 m
• Housing protection: IP55
• Battery cooling: Integrated cooling system
• Safety: Automatic fire extinguisher in battery pack, leakage sensors, temperature sensors
• Range: Up to 150 km per charge
• Charging time: 3–4 hours (fast charging)
• Charging adapter: 180 kW, 3‑phase AC, ground‑mounted
• Input voltage: 415 V AC
• Input current: 300 A
• Cable length: 4.5 m
• Housing protection: IP55
• Battery cooling: Integrated cooling system
• Safety: Automatic fire extinguisher in battery pack, leakage sensors, temperature sensors
Performance
• Max speed: 70 km/h (with speed limiting device)
• Electrical regeneration: Available
• Electrical regeneration: Available
Bus body
• Body description: AIS 052 compliant
• Door: Single door
• Air conditioner: Available
• Door: Single door
• Air conditioner: Available
