Narain Base
Rs. 1.30–1.35 lakh
Specifications & Features
Specifications
Features
Dimensions and weight
• Overall length: 2765 mm
• Overall width: 970 mm
• Overall height: 1795 mm
• Ground clearance: 170 mm
• Seating capacity: D+4 persons
• Wheelbase: 2040 mm
• GVW: 752 kg
• Overall width: 970 mm
• Overall height: 1795 mm
• Ground clearance: 170 mm
• Seating capacity: D+4 persons
• Wheelbase: 2040 mm
• GVW: 752 kg
Powertrain
• Motor type: BLDC
• Motor power: 1200 W
• Transmission: Direct drive
• Max speed: 23.92 km/h
• Gradeability: 10–12% (typical for L3M segment)
• Motor power: 1200 W
• Transmission: Direct drive
• Max speed: 23.92 km/h
• Gradeability: 10–12% (typical for L3M segment)
Battery and charging
• Battery type: Lithium-ion (51.2V, 105Ah) / Lead Acid (130Ah)
• Range: 100–120 km per charge
• Charging time: 4 hrs (Li-ion), 7–8 hrs (Lead Acid)
• Battery management: Integrated BMS with temperature sensors
• Charger type: Standard 220V AC input
• Range: 100–120 km per charge
• Charging time: 4 hrs (Li-ion), 7–8 hrs (Lead Acid)
• Battery management: Integrated BMS with temperature sensors
• Charger type: Standard 220V AC input
Brakes and suspension
• Brake system: Drum brakes (front and rear)
• Suspension: Hydraulic shock absorbers (front), leaf spring (rear)
• Tyres: 3.75-12, tubeless
• Suspension: Hydraulic shock absorbers (front), leaf spring (rear)
• Tyres: 3.75-12, tubeless
Body and features
• Body type: Fully built passenger carrier
• Luggage carrier: Included
• Speedometer: Digital
• Entry system: Keyless
• Lighting: Fog lamps, LED headlamps
• Cabin: FRP roof with side curtains
• Luggage carrier: Included
• Speedometer: Digital
• Entry system: Keyless
• Lighting: Fog lamps, LED headlamps
• Cabin: FRP roof with side curtains

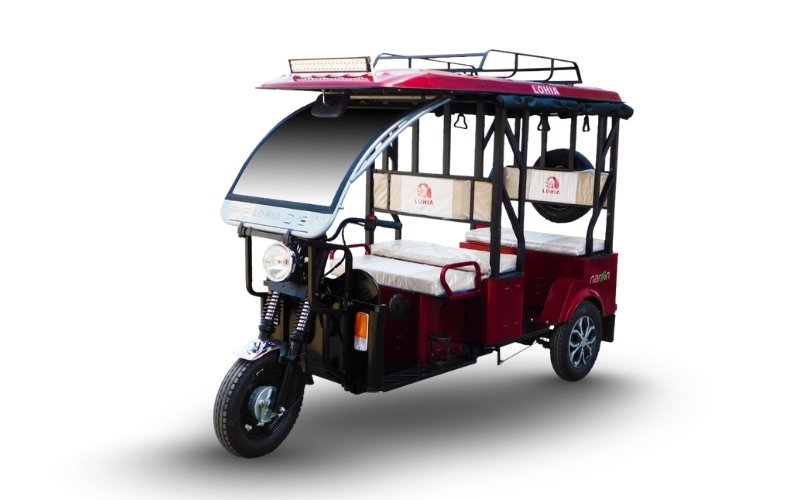

Narain Base Colours
Red
