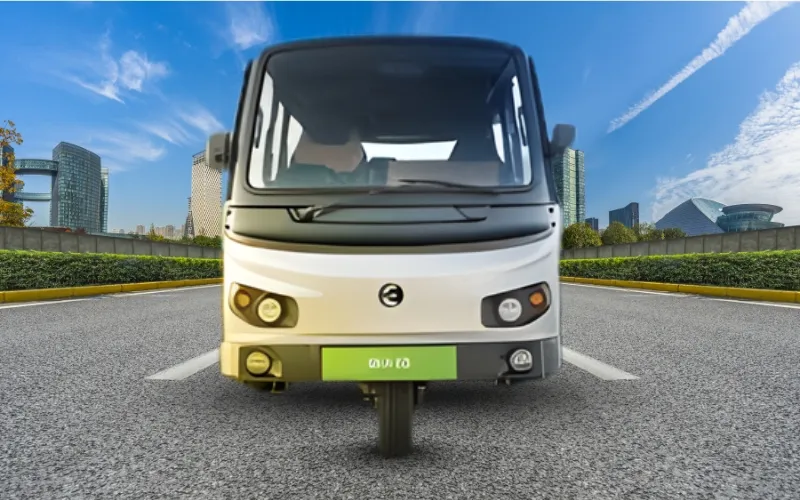

6S
Rs. 3.8 – 4.8 Lakh
Specifications & Features
Specifications
Features
Dimensions, weight, and body
• Vehicle L × W × H: 3545 × 1580 × 1930 mm
• Wheelbase: 2300 mm
• Ground clearance: 178 mm
• Turning radius: 4.5 m
• GVW: 1340 kg
• Vehicle category: L5M
• Chassis: Ladder frame
• Seating capacity: D + 6
• Luggage space: Rear compartment
• Wheelbase: 2300 mm
• Ground clearance: 178 mm
• Turning radius: 4.5 m
• GVW: 1340 kg
• Vehicle category: L5M
• Chassis: Ladder frame
• Seating capacity: D + 6
• Luggage space: Rear compartment
Tyres, steering, suspension, brakes
• Tyre size: Tubeless 120/80 R12
• Steering: Rack & pinion steering wheel
• Front suspension: Dual helical spring with damper
• Rear suspension: Shocker absorber with torsion bar
• Brakes: Front disc, rear drum
• Steering: Rack & pinion steering wheel
• Front suspension: Dual helical spring with damper
• Rear suspension: Shocker absorber with torsion bar
• Brakes: Front disc, rear drum
Powertrain and performance
• Battery type: Lithium Ferrous Phosphate (LFP)
• Battery capacity: 15 kWh
• Operating voltage: 51.2 V
• Peak power: 12 kW
• Peak torque: 65 Nm
• Max speed: 50 km/h
• Range (single charge): 140 km*
• Gradeability: 21%
• Transmission: EV motor drive
• Technology: Smart pedal + enhanced regenerative braking
• Battery capacity: 15 kWh
• Operating voltage: 51.2 V
• Peak power: 12 kW
• Peak torque: 65 Nm
• Max speed: 50 km/h
• Range (single charge): 140 km*
• Gradeability: 21%
• Transmission: EV motor drive
• Technology: Smart pedal + enhanced regenerative braking
Charging
• Option 1: Single‑phase AC charging / home charging
– Socket: 3‑pin 16 Amp
– Charging time: 5 hrs
• Option 2: DC fast charging
– Socket: Type 6 DC
– Charging time: 2 hrs
• Standard charging time: 3 hrs 15 min (80% < 3 hrs)
– Socket: 3‑pin 16 Amp
– Charging time: 5 hrs
• Option 2: DC fast charging
– Socket: Type 6 DC
– Charging time: 2 hrs
• Standard charging time: 3 hrs 15 min (80% < 3 hrs)
Warranty
• Vehicle warranty: 3 years or 1,25,000 km (whichever is earlier)
• Battery warranty: 6 years or 1,65,000 km (whichever is earlier)
Range is as per standard/applicable driving cycle.
• Battery warranty: 6 years or 1,65,000 km (whichever is earlier)
Range is as per standard/applicable driving cycle.
