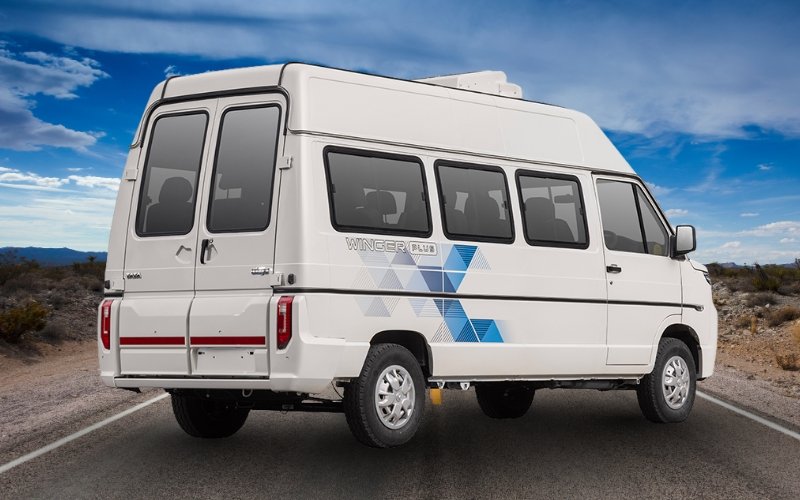

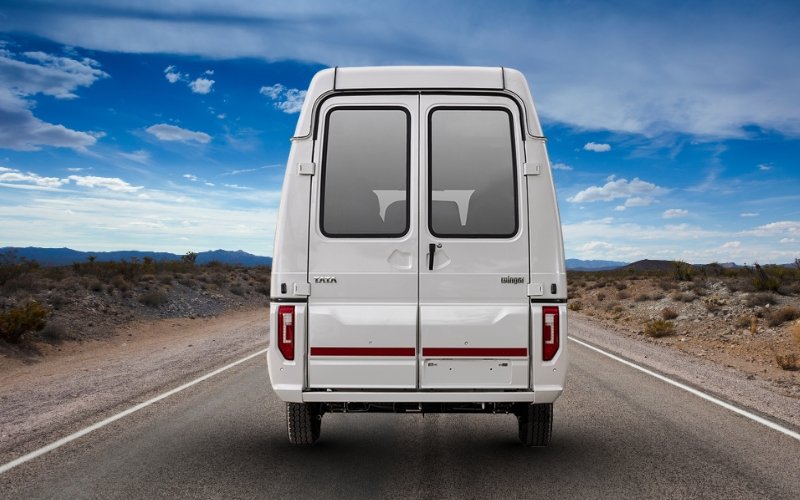

Winger Plus
Rs. 13.00 – 15.00 Lakh
Specifications & Features
Specifications
Features
Dimensions and weight
• Wheelbase: 3488 mm
• Overall length: 5478 mm
• Overall width: 1905 mm
• Overall height: 2409 mm (NAC) / 2670 mm (AC)
• Turning circle diameter: 13.6 m
• Engine displacement: 2179 cc
• GVW: ~3,000 kg (class standard for segment)
• Overall length: 5478 mm
• Overall width: 1905 mm
• Overall height: 2409 mm (NAC) / 2670 mm (AC)
• Turning circle diameter: 13.6 m
• Engine displacement: 2179 cc
• GVW: ~3,000 kg (class standard for segment)
Engine and transmission
• Engine type: TATA DICOR 2.2L BS6 RDE Diesel
• Max output: 74.8 kW @ 3750 rpm
• Max torque: 200 Nm @ 1250–3500 rpm
• Gearbox: TA‑70, 5F / 1R, synchromesh on all gears
• BS6 technology: DOC + DPF + SCR
• DEF tank capacity: 16 L
• Fuel tank capacity: 60 L
• Max output: 74.8 kW @ 3750 rpm
• Max torque: 200 Nm @ 1250–3500 rpm
• Gearbox: TA‑70, 5F / 1R, synchromesh on all gears
• BS6 technology: DOC + DPF + SCR
• DEF tank capacity: 16 L
• Fuel tank capacity: 60 L
Axles, steering, brakes
• Front axle: Independent stub axle with CV shaft arrangement
• Rear axle: Rigid / dead type
• Steering: Power steering, rack and pinion
• Front brakes: Disc brakes with twin pot calliper
• Rear brakes: Drum brakes with ABS
• Brake type: Hydraulic with vacuum booster
• Rear axle: Rigid / dead type
• Steering: Power steering, rack and pinion
• Front brakes: Disc brakes with twin pot calliper
• Rear brakes: Drum brakes with ABS
• Brake type: Hydraulic with vacuum booster
Suspension and tyres
• Front suspension: McPherson strut with coil spring, wishbone type
• Rear suspension: Parabolic leaf springs with hydraulic double‑acting telescopic shock absorber
• Tyres: 195 R 15 LT, 8PR
• Rear suspension: Parabolic leaf springs with hydraulic double‑acting telescopic shock absorber
• Tyres: 195 R 15 LT, 8PR
Electricals
• Battery: 12 V, 80 Ah
• Alternator capacity: 150 A
Seating capacity
• 9 seater luxury captain seats (fully reclining)
• Alternator capacity: 150 A
Seating capacity
• 9 seater luxury captain seats (fully reclining)
Winger Plus Comparison with Similar Vans
| Model |
 Tata Motors Magic Ambulance |
 Tata Motors Magic Express |
 Tata Motors Magic Mantra |
Tata Motors Winger Plus |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 7.00 – 9.00 Lakh | 6.00 – 8.00 Lakh | 6.00 – 8.00 Lakh | 13.00 – 15.00 Lakh |
| Fuel Type | Petrol | Diesel | Diesel | Diesel |
| Seat | 7 | 10 | 10 | 9 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | Luxury |
| Action | Compare | Compare | Compare | Compare |
