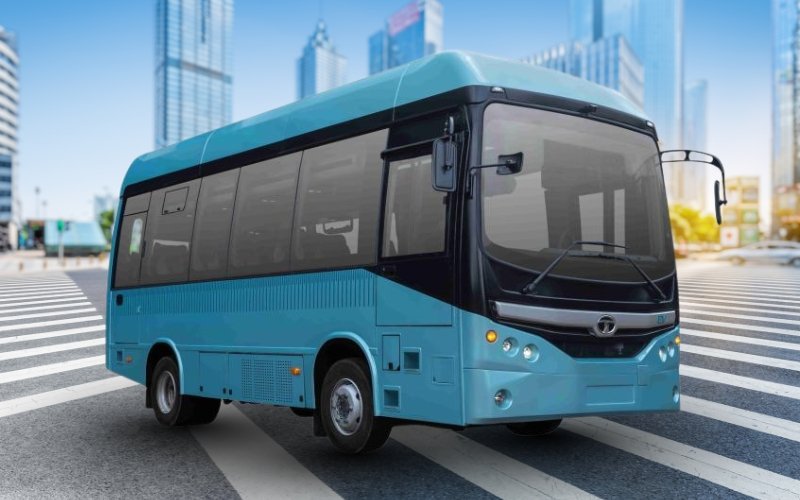

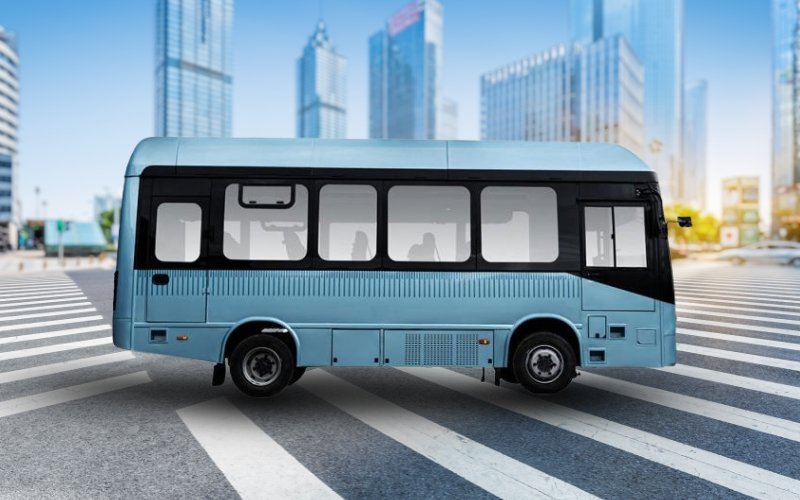

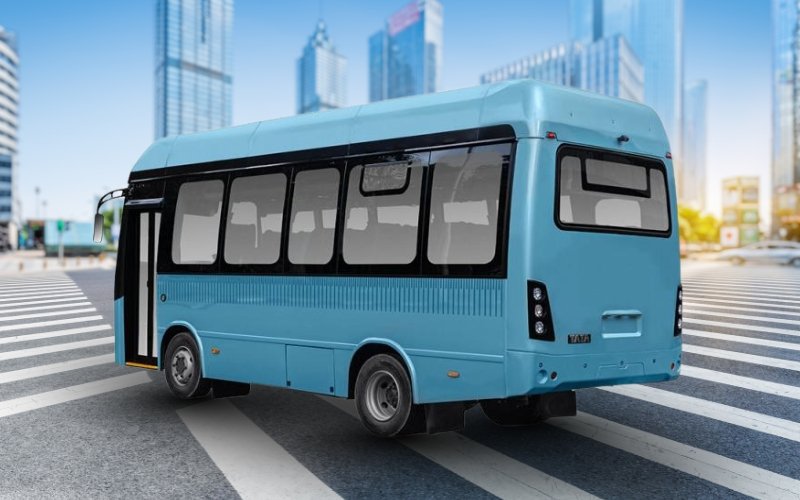

Ultra 9 or 7 EV
Rs. 1.2 – 1.4 Crore
Specifications & Features
Specifications
Features
Dimensions, weight, and body
• Gross Vehicle Weight: 9500 kg (FAW 4500, RAW 5000)
• Seated passengers: 19 + Driver (2x1 layout)
• Overall dimensions: 7150 × 2340 × 3200 mm (L × W × H)
• Wheelbase: 3450 mm
• Front overhang: 1830 mm
• Rear overhang: 1870 mm
• Floor height: 900 mm
• Overall height: 3200 mm
• Turning circle diameter: <14 m
• Seated passengers: 19 + Driver (2x1 layout)
• Overall dimensions: 7150 × 2340 × 3200 mm (L × W × H)
• Wheelbase: 3450 mm
• Front overhang: 1830 mm
• Rear overhang: 1870 mm
• Floor height: 900 mm
• Overall height: 3200 mm
• Turning circle diameter: <14 m
Powertrain and performance
• Motor peak/continuous power: 213 / 144 kW
• Motor peak/continuous torque: 2432 / 1273 Nm
• HV battery spec: 200 kWh (total capacity)
• Charger type: CCS2
• LV system voltage: 24 V
• Max speed: 75 km/h
• Restart ability: 23% @ rated GVW
• Acceleration: ≥ 0.8 m/s²
• Acceleration 0–30 km/h: As per CMVR
• Motor peak/continuous torque: 2432 / 1273 Nm
• HV battery spec: 200 kWh (total capacity)
• Charger type: CCS2
• LV system voltage: 24 V
• Max speed: 75 km/h
• Restart ability: 23% @ rated GVW
• Acceleration: ≥ 0.8 m/s²
• Acceleration 0–30 km/h: As per CMVR
Tyres, steering, suspension, brakes
• Tyres: 245/70 R17.5
• Steering: Motor‑driven hydraulic PAS, tilt & telescopic modified
• Suspension front: Air suspension
• Suspension rear: Air suspension with ride optimization
• Brakes: Pneumatic (front disc/rear drum) + EBS + ESC
• Axles front: Heavy‑duty forged I beam, reverse Elliot type
• Axles rear: Banjo R0406B twin
• Steering: Motor‑driven hydraulic PAS, tilt & telescopic modified
• Suspension front: Air suspension
• Suspension rear: Air suspension with ride optimization
• Brakes: Pneumatic (front disc/rear drum) + EBS + ESC
• Axles front: Heavy‑duty forged I beam, reverse Elliot type
• Axles rear: Banjo R0406B twin
Seating capacity
• SKL: 19 seats + driver
• STD: 16–26 seats (depending on layout)
• AC / Non‑AC options: Both available
• STD: 16–26 seats (depending on layout)
• AC / Non‑AC options: Both available
Ultra 9 or 7 EV Comparison with Similar Buses
| Model |
 Tata Motors Starbus 4 12 EV |
 Tata Motors Starbus 9 12 EV |
 Tata Motors Starbus Prime 51 PLUS A PLUS D 916 OR 52 |
 Tata Motors Starbus Prime 51 PLUS A PLUS D LP916 OR 52 |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 1.5 – 2.0 Crore | 1.95 – 2.45 Crore | 38.00 – 48.00 Lakh | 39.00 – 49.00 Lakh |
| Fuel Type | Electric | Electric | Diesel | CNG |
| Seat | 36 | 46 | 68 | 60 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | New |
| Action | Compare | Compare | Compare | Compare |
