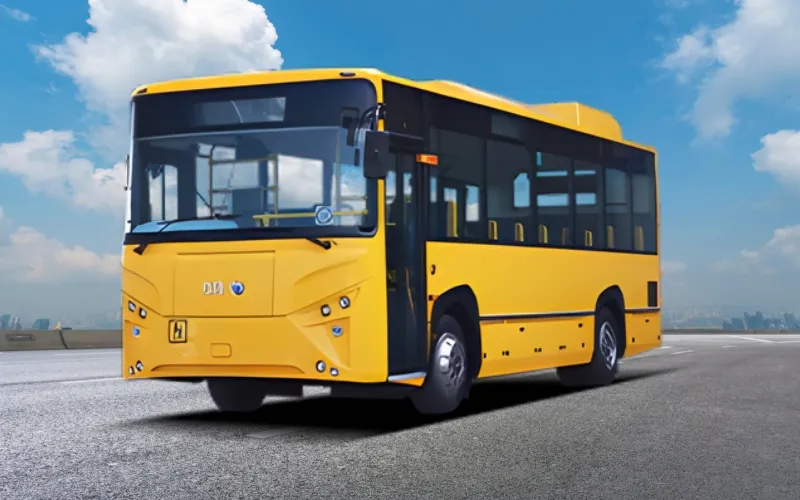

E Skoolife
Rs. 1.45 – 2.10 Crore
Specifications & Features
Specifications
Features
Dimensions & Build
• 9M HF: 9300 mm × 2477 mm × 3465 mm
• 12M HF: 12000 mm × 2576 mm × 3508 mm
• Wheelbase: 4750 mm (9M), 6200 mm (12M)
• Floor Height: 900 mm
• GVW: 14000 kg (9M), 18500 kg (12M)
• Structure: Ladder frame chassis with corrosion-resistant high-strength steel
• Body Compliance: AIS-052 & AIS-063
• Exterior Panels: FRP front/rear, aluminum side panels, optional stretched steel
• Passenger Doors: Automatic front door with extra lower step
• Door Types: Jack-knife, Out-swing (optional)
• Emergency Exits: Yes
• Luggage Rack: Optional
• 12M HF: 12000 mm × 2576 mm × 3508 mm
• Wheelbase: 4750 mm (9M), 6200 mm (12M)
• Floor Height: 900 mm
• GVW: 14000 kg (9M), 18500 kg (12M)
• Structure: Ladder frame chassis with corrosion-resistant high-strength steel
• Body Compliance: AIS-052 & AIS-063
• Exterior Panels: FRP front/rear, aluminum side panels, optional stretched steel
• Passenger Doors: Automatic front door with extra lower step
• Door Types: Jack-knife, Out-swing (optional)
• Emergency Exits: Yes
• Luggage Rack: Optional
Seating & Layout
• 9M HF:
– 37 students (2×2)
– 45 students (3×2)
– 54 students (3×3) + Driver
• 12M HF:
– 49 students (2×2)
– 64 students (3×2)
– 76 students (3×3) + Driver
– 37 students (2×2)
– 45 students (3×2)
– 54 students (3×3) + Driver
• 12M HF:
– 49 students (2×2)
– 64 students (3×2)
– 76 students (3×3) + Driver
Tyres & Suspension
• Tyres:
– 9M: 255/70 R22.5 Radial Tubeless
– 12M: 295/80 R22.5 Radial Tubeless
• Suspension: Front & Rear Air Suspension with ECAS (optional)
– 9M: 255/70 R22.5 Radial Tubeless
– 12M: 295/80 R22.5 Radial Tubeless
• Suspension: Front & Rear Air Suspension with ECAS (optional)
Powertrain & Battery
• Traction Motor:
– 9M: 200 kW Permanent Magnet Synchronous Motor
– 12M: 250 kW Permanent Magnet Synchronous Motor
• Battery Type: Advanced Li-ion Chemistry
• Charging: CCS2 Plug-in Fast Charging
• Regenerative Braking: Yes
• Daily Operational Range: 300 km
• Max Speed: 80 kmph
– 9M: 200 kW Permanent Magnet Synchronous Motor
– 12M: 250 kW Permanent Magnet Synchronous Motor
• Battery Type: Advanced Li-ion Chemistry
• Charging: CCS2 Plug-in Fast Charging
• Regenerative Braking: Yes
• Daily Operational Range: 300 km
• Max Speed: 80 kmph
Brakes & Safety
• Brakes: All Disc Brakes (Drum optional)
• Safety Systems:
– EBS and ABS for stability
– FDSS (Fire Detection & Suppression System)
– High-temperature battery cut-off
– Surveillance cameras and VTS
– HV safety: surge, short circuit, overload protection, insulation monitoring, interlock system
– IM and IL safety compliance
• Safety Systems:
– EBS and ABS for stability
– FDSS (Fire Detection & Suppression System)
– High-temperature battery cut-off
– Surveillance cameras and VTS
– HV safety: surge, short circuit, overload protection, insulation monitoring, interlock system
– IM and IL safety compliance
Driver Comfort & Tech
• Steering: Electric motor driven + Hydraulic power assisted with tilt & telescopic mechanism
• HVAC: Yes (heating optional)
• HVAC: Yes (heating optional)
E Skoolife Comparison with Similar Buses
| Model |
 JBM Galaxy Sleeper |
 JBM Galaxy Seater |
 JBM E Skylife |
 JBM Eco Life |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 2.25 – 2.75 Crore | 2.10 – 2.60 Crore | 1.75 – 2.10 Crore | 1.65 – 2.05 Crore |
| Fuel Type | Electric | Electric | Electric | Electric |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | New |
| Action | Compare | Compare | Compare | Compare |
