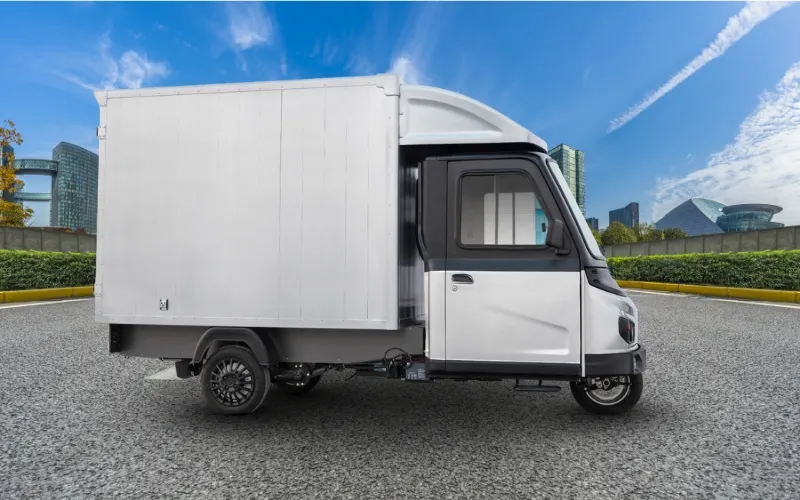

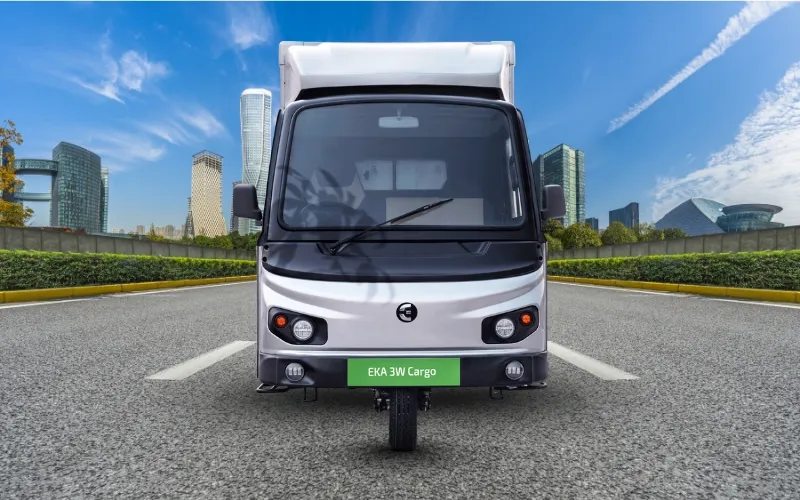

3W Cargo
Rs. 3.5 – 4.5 Lakh
Specifications & Features
Specifications
Features
Dimensions, weight, and body
• Vehicle L × W × H: 3950 × 1580 × 2400 mm
• Wheelbase: 2550 mm
• Ground clearance: 172 mm
• Turning radius: 5 m
• GVW: 1700 kg
• Payload: 750 kg (highlight mentions class‑leading 770 kg)
• Vehicle category: L5N
• Chassis: Ladder frame
• Seating capacity: D + 2
• Deck length: 2400 mm (best‑in‑class)
• Battery mounting: Centrally mounted
• Wheelbase: 2550 mm
• Ground clearance: 172 mm
• Turning radius: 5 m
• GVW: 1700 kg
• Payload: 750 kg (highlight mentions class‑leading 770 kg)
• Vehicle category: L5N
• Chassis: Ladder frame
• Seating capacity: D + 2
• Deck length: 2400 mm (best‑in‑class)
• Battery mounting: Centrally mounted
Container specifications
• Body type: Sturdy MS/AL body
• External dimensions: 2300 × 1550 × 1750 mm
• Volume: 220 ft³
• External dimensions: 2300 × 1550 × 1750 mm
• Volume: 220 ft³
Tyres, steering, suspension, brakes
• Tyre size: Tubeless 130/80 R12 (12‑inch)
• Steering: Rack & pinion steering wheel
• Front suspension: Dual helical spring with damper
• Rear suspension: Shocker absorber with torsion bar
• Brakes: Front disc, rear drum
• Steering: Rack & pinion steering wheel
• Front suspension: Dual helical spring with damper
• Rear suspension: Shocker absorber with torsion bar
• Brakes: Front disc, rear drum
Powertrain and performance
• Battery type: Lithium Ferrous Phosphate (LFP)
• Battery capacity: 20 kWh (first‑in‑class)
• Operating voltage: 51.2 V
• Peak power: 15 kW
• Peak torque: 80 Nm
• Max speed: 50 km/h
• Range (single charge): 200 km*
• Gradeability: 19%
• Hill‑hold assist: Yes
• Transmission: EV motor drive
• Technology: i‑Pedal + enhanced regenerative braking
• Battery capacity: 20 kWh (first‑in‑class)
• Operating voltage: 51.2 V
• Peak power: 15 kW
• Peak torque: 80 Nm
• Max speed: 50 km/h
• Range (single charge): 200 km*
• Gradeability: 19%
• Hill‑hold assist: Yes
• Transmission: EV motor drive
• Technology: i‑Pedal + enhanced regenerative braking
Charging
• Option 1: Single‑phase AC charging
– Socket: 3‑pin 16 Amp
– Charging time: 6.5 hrs
• Option 2: DC fast charging
– Socket: Type 6 connector
– Charging time: 3 hrs
• On‑board charger included
– Socket: 3‑pin 16 Amp
– Charging time: 6.5 hrs
• Option 2: DC fast charging
– Socket: Type 6 connector
– Charging time: 3 hrs
• On‑board charger included
Warranty
• Vehicle warranty: 3 years or 1,25,000 km (whichever is earlier)
• Battery warranty: 6 years or 1,65,000 km (whichever is earlier)
Range is as per the standard/applicable driving cycle.
• Battery warranty: 6 years or 1,65,000 km (whichever is earlier)
Range is as per the standard/applicable driving cycle.
