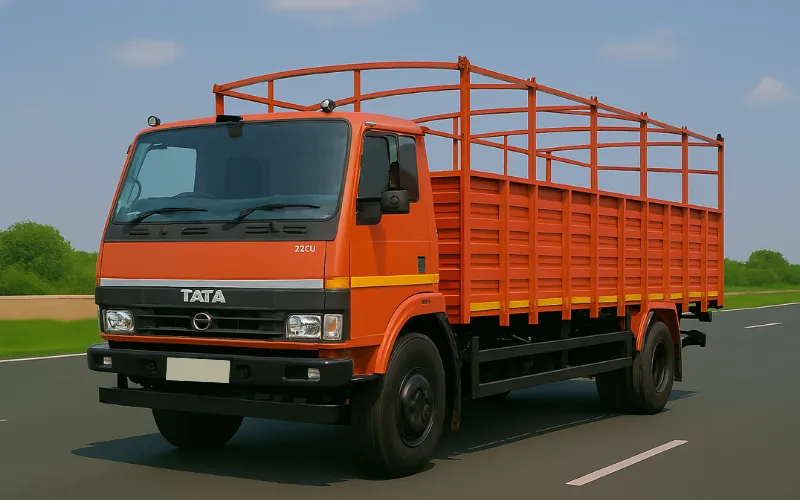

LPT 1416
Rs. 29 Lakhs
Specifications & Features
Specifications
Features
Engine & Performance
• Engine: 3.3 L NG BS6-compliant diesel
• Max Power: 117.7 kW (160 hp) @ 2600 rpm
• Max Torque: 475 Nm @ 1600–2000 rpm (Heavy Mode)
• Emission Norms: BS-VI
• Fuel Tank Capacity: 160 L
• GVW: 14,250 kg
• Gradeability: 27%
• Transmission: G550 6-speed manual (6F + 1R), cable shift
• Clutch: 330 mm single plate dry friction type
• Max Power: 117.7 kW (160 hp) @ 2600 rpm
• Max Torque: 475 Nm @ 1600–2000 rpm (Heavy Mode)
• Emission Norms: BS-VI
• Fuel Tank Capacity: 160 L
• GVW: 14,250 kg
• Gradeability: 27%
• Transmission: G550 6-speed manual (6F + 1R), cable shift
• Clutch: 330 mm single plate dry friction type
Transmission & Axles
• Gearbox: G550 6-speed manual (6F + 1R), cable shift
• Drivetrain: 4×2 axle configuration
• Clutch: 330 mm single plate dry friction type
• Rear Axle: Tata RA 1109R fully floating benjo axle (RAR 5.857)
• Front Axle: Forged I-beam reverse Elliot type
• Drivetrain: 4×2 axle configuration
• Clutch: 330 mm single plate dry friction type
• Rear Axle: Tata RA 1109R fully floating benjo axle (RAR 5.857)
• Front Axle: Forged I-beam reverse Elliot type
Suspension & Chassis
• Front Suspension: Parabolic leaf spring with hydraulic double-acting telescopic shock absorbers
• Rear Suspension: Semi-elliptical multi-leaf spring with auxiliary springs
• Chassis Type: Ladder frame chassis with bolted construction
• Cabin Type: Day cabin, tiltable for easy maintenance
• Wheelbase Options: 3920 mm / 4530 mm / 5300 mm
• Ground Clearance: 225 mm
• Rear Suspension: Semi-elliptical multi-leaf spring with auxiliary springs
• Chassis Type: Ladder frame chassis with bolted construction
• Cabin Type: Day cabin, tiltable for easy maintenance
• Wheelbase Options: 3920 mm / 4530 mm / 5300 mm
• Ground Clearance: 225 mm
Dimensions & Capacity
• Payload Capacity: ~10,000 kg (variant-dependent)
• GVW: 14,250 kg
• Load Body Dimensions (L×W×H):
– 6096 × 2175 × 1835 mm
– 6800 × 2175 × 1835 mm
• Wheelbase Options: 3920 mm / 4530 mm / 5300 mm
• Ground Clearance: 225 mm
• Fuel Tank Capacity: 160 L
• GVW: 14,250 kg
• Load Body Dimensions (L×W×H):
– 6096 × 2175 × 1835 mm
– 6800 × 2175 × 1835 mm
• Wheelbase Options: 3920 mm / 4530 mm / 5300 mm
• Ground Clearance: 225 mm
• Fuel Tank Capacity: 160 L
