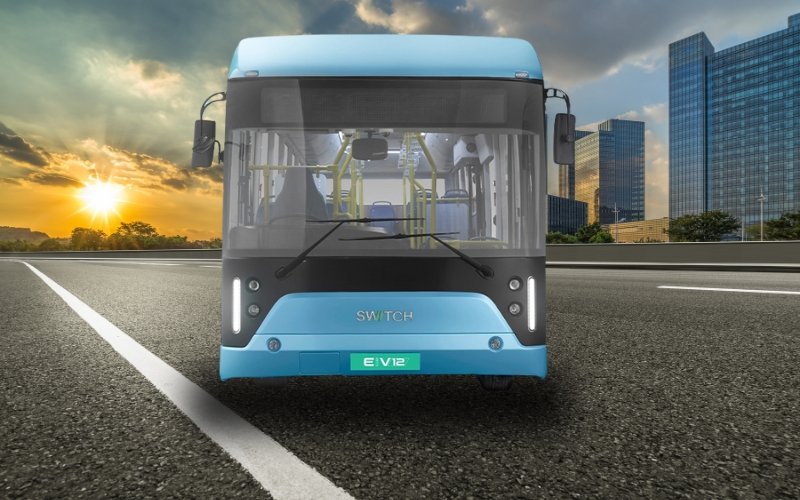

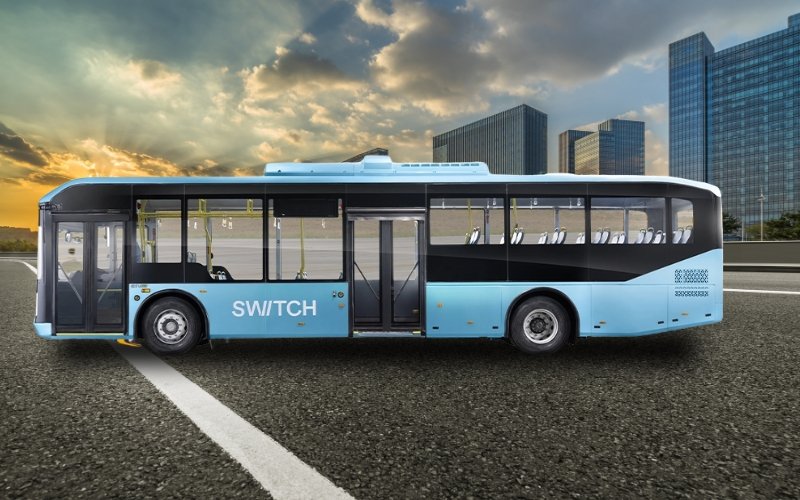

EiV 12 Ultra Low Entry
Rs. 2.35 – 2.95 Crore
Specifications & Features
Specifications
Features
Dimensions & Build
• Length × Width × Height: 12000 mm × 2600 mm × 3180 mm
• Wheelbase: 6320 mm
• Floor Height: 400 mm (Ultra Low Entry)
• Ground Clearance: 270 mm
• Structure: AIS-052 compliant with FOH/WB door options
• Passenger Doors: Front Overhang (FOH) / Wheelbase (WB)
• Emergency Exits: Yes
• Wheelchair Ramp: Manual or automated
• Wheelbase: 6320 mm
• Floor Height: 400 mm (Ultra Low Entry)
• Ground Clearance: 270 mm
• Structure: AIS-052 compliant with FOH/WB door options
• Passenger Doors: Front Overhang (FOH) / Wheelbase (WB)
• Emergency Exits: Yes
• Wheelchair Ramp: Manual or automated
Seating & Layout
• Capacity: 35 + Driver + Wheelchair (customizable)
• Alternate Layouts:
– 39 PMS + D + 24 standees
– 32 HHR + 4 folding + D + 20 standees
• Driver Seat: Adjustable with ELR seatbelt
• Panoramic Glass: Yes, for enhanced visibility
• Alternate Layouts:
– 39 PMS + D + 24 standees
– 32 HHR + 4 folding + D + 20 standees
• Driver Seat: Adjustable with ELR seatbelt
• Panoramic Glass: Yes, for enhanced visibility
Tyres & Suspension
• Tyres: 295/80 R22.5 – 16PR
• Suspension: Full Air Suspension (Front & Rear)
• Kneeling & Tilting: Enabled for ultra-low entry
• Suspension: Full Air Suspension (Front & Rear)
• Kneeling & Tilting: Enabled for ultra-low entry
Powertrain & Battery
• Motor Type: PMSM (Permanent Magnet Synchronous AC Motor)
• Power: 140 kW Continuous / 235 kW Peak
• Torque: 3100 Nm Peak
• Battery Type: Advanced NMC (Modular)
• Battery Capacity: 283 kWh
• Charging: Dual-Gun CCS2 Fast Charging
• Charging Time: 1.5–3 hours
• Daily Operational Range:
– 300 km per charge
– Up to 500 km/day with fast charging
• Battery Mount: Floor-mounted for low center of gravity
• Power: 140 kW Continuous / 235 kW Peak
• Torque: 3100 Nm Peak
• Battery Type: Advanced NMC (Modular)
• Battery Capacity: 283 kWh
• Charging: Dual-Gun CCS2 Fast Charging
• Charging Time: 1.5–3 hours
• Daily Operational Range:
– 300 km per charge
– Up to 500 km/day with fast charging
• Battery Mount: Floor-mounted for low center of gravity
Brakes & Safety
• Brakes: Disc Brakes (Front & Rear)
• Fire Safety: Fire Detection & Suppression System (FDSS)
• HV Safety: Surge, short circuit, overload protection, insulation monitoring, interlock system
• Monitoring: Switch iON platform (140+ parameters, 6s latency, 80+ alerts)
• Fire Safety: Fire Detection & Suppression System (FDSS)
• HV Safety: Surge, short circuit, overload protection, insulation monitoring, interlock system
• Monitoring: Switch iON platform (140+ parameters, 6s latency, 80+ alerts)
EiV 12 Ultra Low Entry Comparison with Similar Buses
| Model |
 Switch Mobility EiV 9 Standard |
 Switch Mobility EiV 12 Standard |
Switch Mobility EiV 12 Ultra Low Entry |
 Switch Mobility EiV 22 Double Decker |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 1.85 – 2.35 Crore | 2.25 – 2.85 Crore | 2.35 – 2.95 Crore | 2.00 – 2.20 Crore |
| Fuel Type | Electric | Electric | Electric | Electric |
| Seat | 46 | 62 | 37 | 64 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | New |
| Action | Compare | Compare | Compare | Compare |
