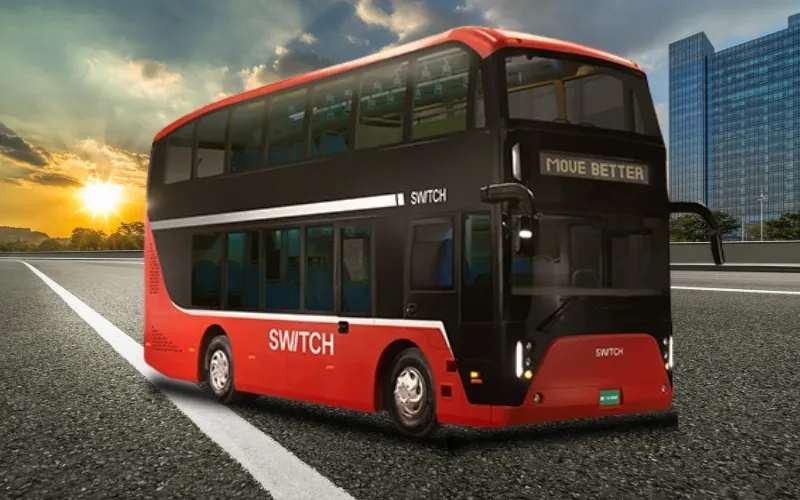

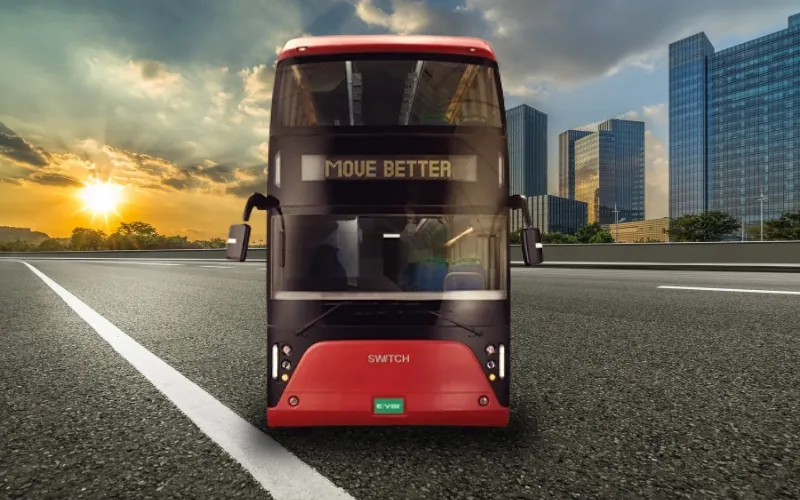

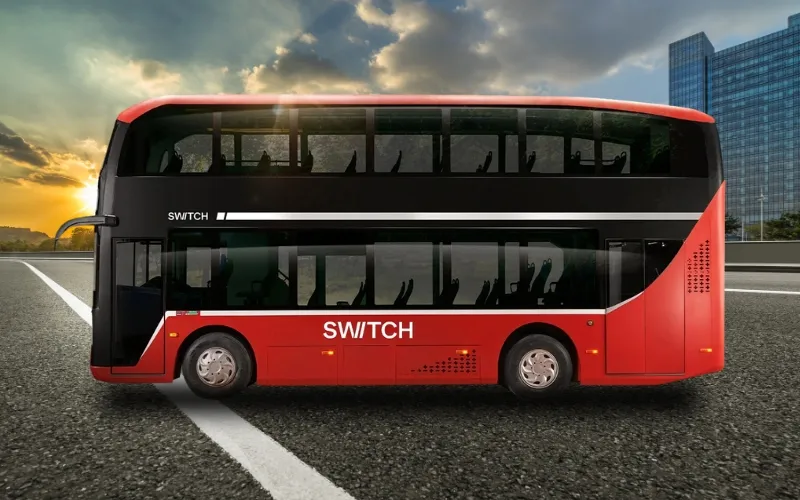

EiV 22 Double Decker
Rs. 2.00 – 2.20 Crore
Specifications & Features
Specifications
Features
Dimensions & Build
• Length × Width × Height: 9800 mm × 2600 mm × 4750 mm
• Wheelbase: 4860 mm
• Floor Height: 900 mm
• Structure: AIS-052 compliant double-decker body
• Passenger Doors: FOH / ROH (Front Overhang / Rear Overhang)
• Emergency Exits: Yes
• Entry: Dual staircases (front & rear) for top deck access
• Battery Mount: Floor-mounted for low center of gravity
• Wheelbase: 4860 mm
• Floor Height: 900 mm
• Structure: AIS-052 compliant double-decker body
• Passenger Doors: FOH / ROH (Front Overhang / Rear Overhang)
• Emergency Exits: Yes
• Entry: Dual staircases (front & rear) for top deck access
• Battery Mount: Floor-mounted for low center of gravity
Seating & Layout
• Capacity: Up to 63 + Driver
• Layout: Dual-deck with panoramic glass top deck
• Optional: Open-top deck for sightseeing applications
• Driver Seat: Adjustable with ELR seatbelt
• Layout: Dual-deck with panoramic glass top deck
• Optional: Open-top deck for sightseeing applications
• Driver Seat: Adjustable with ELR seatbelt
Tyres & Suspension
• Suspension:
– Front: Weveller Suspension
– Rear: Air Suspension
• Tyres: likely 295/80 R22.5
– Front: Weveller Suspension
– Rear: Air Suspension
• Tyres: likely 295/80 R22.5
Powertrain & Battery
• Motor Type: PMSM (Permanent Magnet Synchronous AC Motor)
• Power: 140 kW Continuous / 235 kW Peak
• Torque: 3100 Nm Peak
• Battery Type: Advanced Lithium-Ion NMC (Modular)
• Charging: Dual-Gun CCS2 Fast Charging
• Charging Time: 1.5–3 hours
• Daily Operational Range: Up to 250 km with opportunity charging
• Power: 140 kW Continuous / 235 kW Peak
• Torque: 3100 Nm Peak
• Battery Type: Advanced Lithium-Ion NMC (Modular)
• Charging: Dual-Gun CCS2 Fast Charging
• Charging Time: 1.5–3 hours
• Daily Operational Range: Up to 250 km with opportunity charging
Brakes & Safety
• Brakes: Front Disc & Rear Drum
• HV Safety: Surge, short circuit, overload protection, insulation monitoring, interlock system
• Fire Safety: Fire detection and suppression system
• HV Safety: Surge, short circuit, overload protection, insulation monitoring, interlock system
• Fire Safety: Fire detection and suppression system
EiV 22 Double Decker Comparison with Similar Buses
| Model |
 Switch Mobility EiV 9 Standard |
 Switch Mobility EiV 12 Standard |
 Switch Mobility EiV 12 Ultra Low Entry |
Switch Mobility EiV 22 Double Decker |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 1.85 – 2.35 Crore | 2.25 – 2.85 Crore | 2.35 – 2.95 Crore | 2.00 – 2.20 Crore |
| Fuel Type | Electric | Electric | Electric | Electric |
| Seat | 46 | 62 | 37 | 64 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | New |
| Action | Compare | Compare | Compare | Compare |
