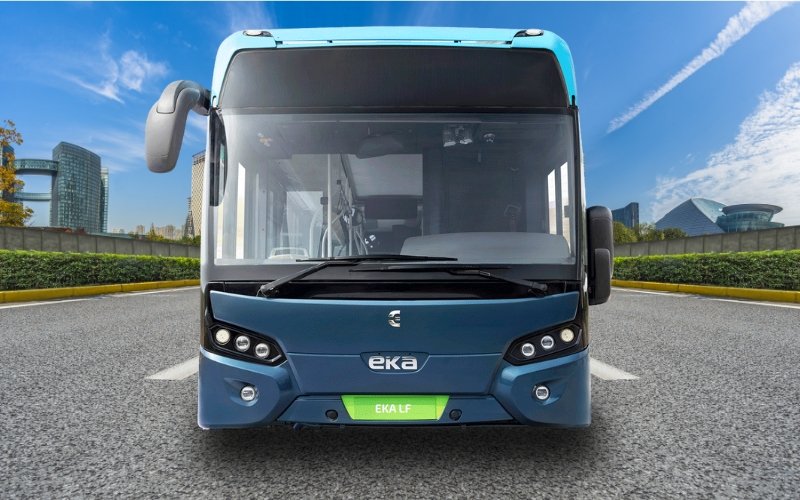

LF
Rs. 2.25 – 2.85 Crore
Specifications & Features
Specifications
Features
Dimensions & Build
• Length × Width × Height: 12000 mm × 2550 mm × 3290 mm
• Wheelbase: 5850 mm
• GVW: 18,745 kg
• Structure: Modular stainless-steel superstructure
• Floor Type: Fully low-floor with flat layout
• Entry:
– LHD: 3 doors
– RHD: 2 doors (Front: 850/1350 mm, Middle: 1350 mm)
• Wheelchair Access: Yes
• Wheelbase: 5850 mm
• GVW: 18,745 kg
• Structure: Modular stainless-steel superstructure
• Floor Type: Fully low-floor with flat layout
• Entry:
– LHD: 3 doors
– RHD: 2 doors (Front: 850/1350 mm, Middle: 1350 mm)
• Wheelchair Access: Yes
Seating & Layout
• D + 27 + WC + 3 Folding Seats (LHD)
• D + 35 + WC + 3 Folding Seats (RHD)
• D + 33 + WC + 3 Folding Seats (RHD)
• Full standing height and low NVH levels
• D + 35 + WC + 3 Folding Seats (RHD)
• D + 33 + WC + 3 Folding Seats (RHD)
• Full standing height and low NVH levels
Tyres & Suspension
• Tyre Type: Tubeless Radial
• Tyre Size: 275/70 R22.5
• Suspension: Electronically Controlled Air Suspension (ECAS) – Front & Rear
• Steering: Electro-Hydraulic Power Steering
• Tyre Size: 275/70 R22.5
• Suspension: Electronically Controlled Air Suspension (ECAS) – Front & Rear
• Steering: Electro-Hydraulic Power Steering
Powertrain & Battery
• Motor Type: PMSM (Permanent Magnet Synchronous AC Motor)
• Max Power: 160 kW
• Max Torque: 2500 Nm
• Battery Type: Lithium Ferrous Phosphate (LFP)
• Battery Capacity: 350 kWh
• Operating Voltage: 580–660 V
• Charging Options:
– Pantograph Overhead Charging
– CCS2 Dual-Gun Plug-in Fast Charging
• Charger Power: 180 kW | 240 kW
• Charging Time: 2.5 hrs | 2 hrs
• Range: 280 km (standard driving cycle)
• Gradeability: 12%
• Max Speed: 75 kmph
• Max Power: 160 kW
• Max Torque: 2500 Nm
• Battery Type: Lithium Ferrous Phosphate (LFP)
• Battery Capacity: 350 kWh
• Operating Voltage: 580–660 V
• Charging Options:
– Pantograph Overhead Charging
– CCS2 Dual-Gun Plug-in Fast Charging
• Charger Power: 180 kW | 240 kW
• Charging Time: 2.5 hrs | 2 hrs
• Range: 280 km (standard driving cycle)
• Gradeability: 12%
• Max Speed: 75 kmph
Brakes & Safety
• Brakes: Disc Brakes (Front & Rear) with Emergency Braking System (EBS)
• Safety Systems:
– ADAS (Advanced Driver Assistance System)
– Liquid-cooled battery
– Regenerative braking
– Sturdy axles
• Safety Systems:
– ADAS (Advanced Driver Assistance System)
– Liquid-cooled battery
– Regenerative braking
– Sturdy axles
Climate Control & Comfort
• HVAC: Heating, Ventilation, and Air Conditioning
• Type: Service Unit + Free Flow
• Capacity: 36 kW
• Interior:
– Full standing height
– Flat floor
– Low NVH
– Accommodation for wheelchair
• Type: Service Unit + Free Flow
• Capacity: 36 kW
• Interior:
– Full standing height
– Flat floor
– Low NVH
– Accommodation for wheelchair
LF Comparison with Similar Buses
| Model |
 EKA Mobility Coach |
EKA Mobility LF |
 EKA Mobility 12M |
 EKA Mobility 9M |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 2.65 – 3.25 Crore | 2.25 – 2.85 Crore | 2.35 – 2.95 Crore | 1.85 – 2.35 Crore |
| Fuel Type | Electric | Electric | Electric | Electric |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | New |
| Action | Compare | Compare | Compare | Compare |
