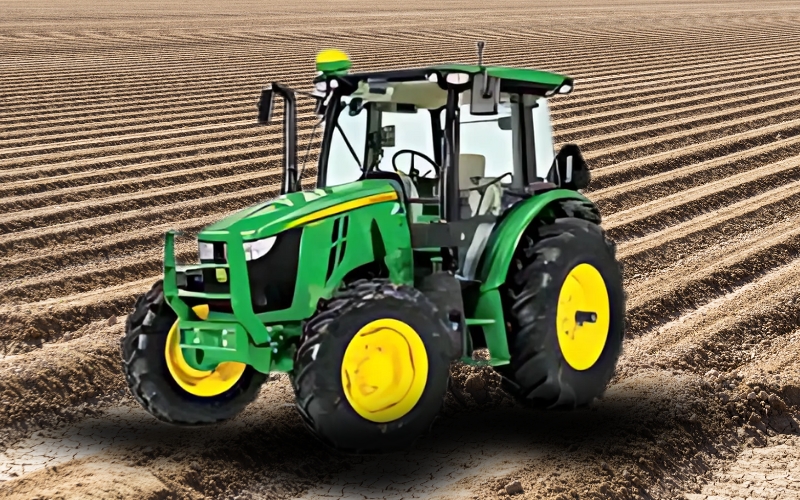

5130M
Rs. 27.50 lakh – 29.90 lakh
Specifications & Features
Specifications
Features
Engine & Performance
• Engine Type: John Deere 4.5L, 4-cylinder diesel
• Power Output: 130 HP @ 2200 RPM
• PTO Power: 119.6 HP
• Max Torque: 541 Nm
• Emission Norm: Bharat Stage V (Tier 4 Final equivalent)
• Fuel Tank Capacity: 150 liters
• PTO Speeds: 540, 540E, 1000 RPM
• PTO Torque Rise: 30%
• FHFPTO: Full Hydraulic Function PTO for simultaneous operations
• Power Output: 130 HP @ 2200 RPM
• PTO Power: 119.6 HP
• Max Torque: 541 Nm
• Emission Norm: Bharat Stage V (Tier 4 Final equivalent)
• Fuel Tank Capacity: 150 liters
• PTO Speeds: 540, 540E, 1000 RPM
• PTO Torque Rise: 30%
• FHFPTO: Full Hydraulic Function PTO for simultaneous operations
Transmission & Axles
• Gearbox: Powr8™ EcoShift – 32 Forward + 16 Reverse
• Creeper Gears: 16F + 8R (0.45–2.36 km/h)
• Drive Type: 4WD
• Clutch Type: Electrohydraulic
• Brake Type: Wet disc brakes
• Steering Type: Hydrostatic power steering
• Rear Axle: MFWD with bar axle option
• Creeper Gears: 16F + 8R (0.45–2.36 km/h)
• Drive Type: 4WD
• Clutch Type: Electrohydraulic
• Brake Type: Wet disc brakes
• Steering Type: Hydrostatic power steering
• Rear Axle: MFWD with bar axle option
Suspension & Structure
• Front Suspension: Heavy-duty MFWD axle
• Rear Suspension: Electronic Hitch Control with telescopic draft links
• Chassis: Full-frame with cast iron ballast options
• Rear Suspension: Electronic Hitch Control with telescopic draft links
• Chassis: Full-frame with cast iron ballast options
Dimensions & Capacity
• Wheelbase: 2400 mm
• Ground Clearance: 470 mm
• Lift Capacity: 3700 kg at ball ends
• Tyres: Front – 480/65R24; Rear – 540/65R38
• Unladen Weight: 3964 kg
• Ground Clearance: 470 mm
• Lift Capacity: 3700 kg at ball ends
• Tyres: Front – 480/65R24; Rear – 540/65R38
• Unladen Weight: 3964 kg
