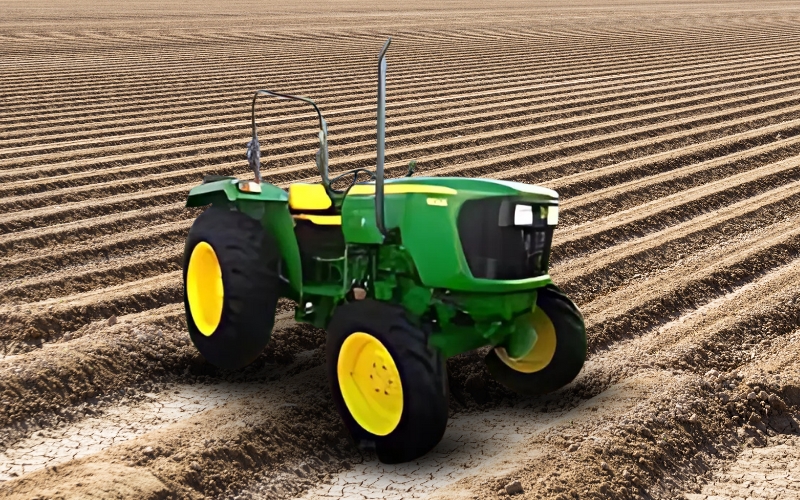

5205
Rs. 7.60 lakh – 10.10 lakh
Specifications & Features
Specifications
Features
Engine & Performance
• Engine Type: John Deere 3029D, Naturally aspirated
• Power Output: 48 HP @ 2100 RPM
• PTO Power: 40.8 HP
• Emission Norm: Bharat Stage (TREM) compliant
• Fuel Tank: 60 liters
• PTO: 540 RPM @ 2100 ERPM
• Air Filter: Dry-type, dual element (99.9% efficiency)
• Cooling System: Coolant cooled + piston spray jet system
• Power Output: 48 HP @ 2100 RPM
• PTO Power: 40.8 HP
• Emission Norm: Bharat Stage (TREM) compliant
• Fuel Tank: 60 liters
• PTO: 540 RPM @ 2100 ERPM
• Air Filter: Dry-type, dual element (99.9% efficiency)
• Cooling System: Coolant cooled + piston spray jet system
Transmission & Axles
• Gearbox: 8 Forward + 4 Reverse Collar Shift
• Drive Type: 2WD
• Clutch Type: Single / Dual (Optional)
• Brake Type: Oil-immersed disc brakes
• Steering Type: Power steering
• Drive Type: 2WD
• Clutch Type: Single / Dual (Optional)
• Brake Type: Oil-immersed disc brakes
• Steering Type: Power steering
Suspension & Structure
• Front Suspension: Adjustable front axle
• Rear Suspension: ADDC
• Chassis: Full-frame with single-piece hood
• Rear Suspension: ADDC
• Chassis: Full-frame with single-piece hood
Dimensions & Capacity
• Wheelbase: 1950 mm
• Overall Length: 3410 mm
• Overall Width: 1810 mm
• Ground Clearance: 415 mm
• Turning Radius with Brakes: 2900 mm
• Lift Capacity: 1600 kg
• Weight: Approx. 3850 – 4520 lbs (1746 – 2050 kg)
• Overall Length: 3410 mm
• Overall Width: 1810 mm
• Ground Clearance: 415 mm
• Turning Radius with Brakes: 2900 mm
• Lift Capacity: 1600 kg
• Weight: Approx. 3850 – 4520 lbs (1746 – 2050 kg)
