Magic Express
Rs. 6.00 – 8.00 Lakh
Specifications & Features
Specifications
Features
Dimensions and weight
• GVW: 1935 kg
• Kerb weight: 1185 kg
• Payload: 750 kg
• Overall length: 3790 mm
• Overall width: 1500 mm
• Overall height: 1890 mm
• Seating capacity: D+9
• Wheelbase: 2100 mm
• Turning circle diameter: 8.6 m
• Ground clearance: 150 mm
• Kerb weight: 1185 kg
• Payload: 750 kg
• Overall length: 3790 mm
• Overall width: 1500 mm
• Overall height: 1890 mm
• Seating capacity: D+9
• Wheelbase: 2100 mm
• Turning circle diameter: 8.6 m
• Ground clearance: 150 mm
Engine and transmission
• Engine type: TATA 275 MPFI03 WC
• Cylinders: 2
• Engine displacement: 694 cc
• Max output: 18.4 kW (25 hp) @ 4000 rpm
• Max torque: 49 Nm @ 2000–3000 rpm
• Clutch type: SP dry friction, 170 mm
• Gearbox: GBS 65/6.31 Synchromesh, 5+R
• Rear axle ratio: 5.143
• Steering: Manual, 380 mm
• Top speed: 65 km/h
• Gradeability: Petrol 29.4% / CNG 26%
• Mileage: 27.2 km/kg (CNG, ARAI certified)
• Cylinders: 2
• Engine displacement: 694 cc
• Max output: 18.4 kW (25 hp) @ 4000 rpm
• Max torque: 49 Nm @ 2000–3000 rpm
• Clutch type: SP dry friction, 170 mm
• Gearbox: GBS 65/6.31 Synchromesh, 5+R
• Rear axle ratio: 5.143
• Steering: Manual, 380 mm
• Top speed: 65 km/h
• Gradeability: Petrol 29.4% / CNG 26%
• Mileage: 27.2 km/kg (CNG, ARAI certified)
Brakes and chassis
• Front brakes: Disc
• Rear brakes: Drum
• Brake type: Hydraulic
• Suspension (front/rear): Semi‑elliptical leaf spring
• Shock absorbers: Double‑acting hydraulic telescopic
• Tyres: 155 R13 LT
• Rear brakes: Drum
• Brake type: Hydraulic
• Suspension (front/rear): Semi‑elliptical leaf spring
• Shock absorbers: Double‑acting hydraulic telescopic
• Tyres: 155 R13 LT
Fuel and battery
• Fuel tank: 60 L (10.8 kg CNG) + 5 L Petrol
• Battery: 12 V / 35 Ah
• Warranty: 2 years / 72,000 km
• Battery: 12 V / 35 Ah
• Warranty: 2 years / 72,000 km
Magic Express Colours

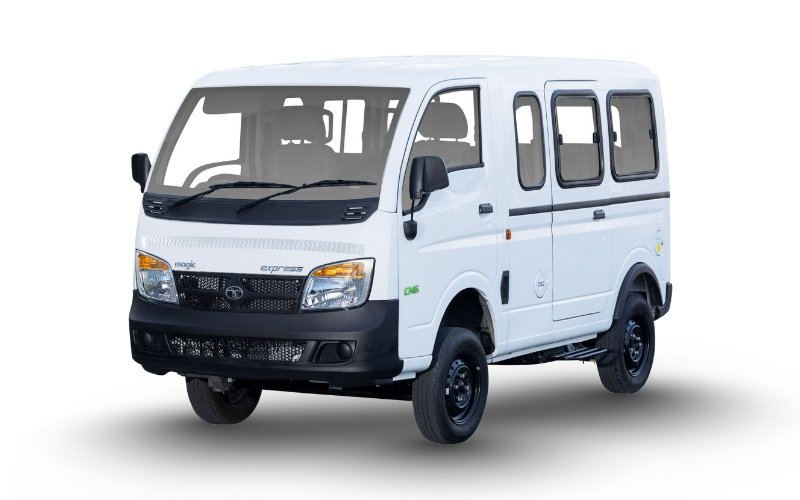

White
Magic Express Comparison with Similar Vans
| Model |

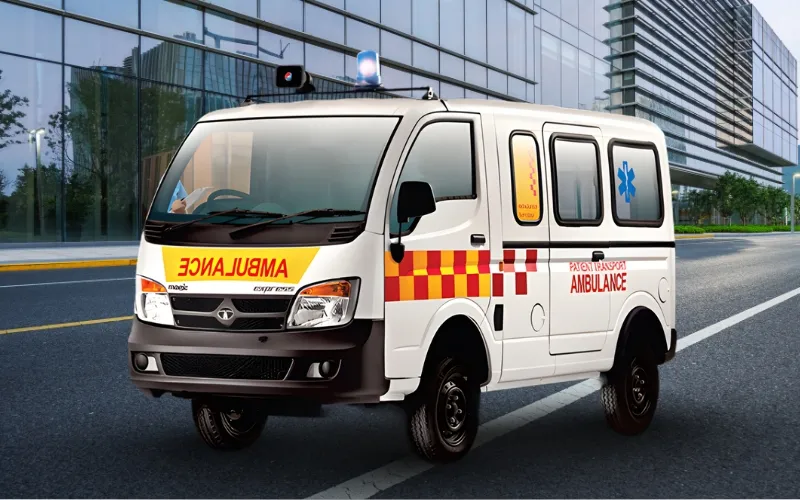

 Tata Motors Magic Ambulance |
Tata Motors Magic Express |

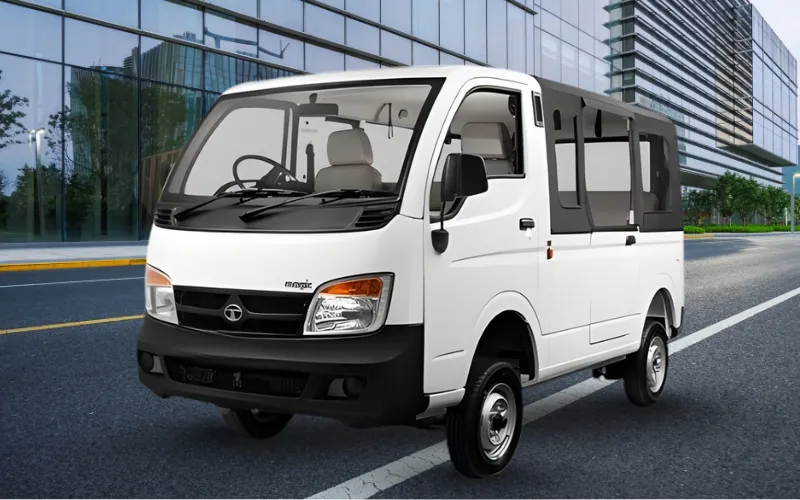

 Tata Motors Magic Mantra |

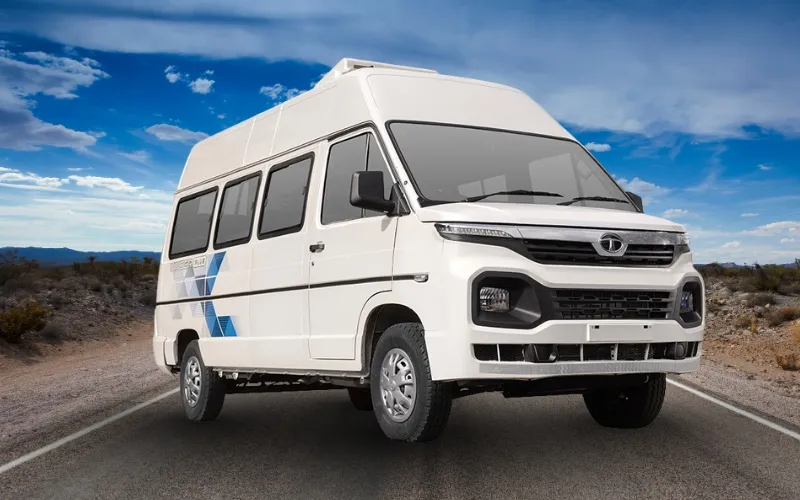

 Tata Motors Winger Plus |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 7.00 – 9.00 Lakh | 6.00 – 8.00 Lakh | 6.00 – 8.00 Lakh | 13.00 – 15.00 Lakh |
| Fuel Type | Petrol | Diesel | Diesel | Diesel |
| Seat | 7 | 10 | 10 | 9 |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | Luxury |
| Action | Compare | Compare | Compare | Compare |
