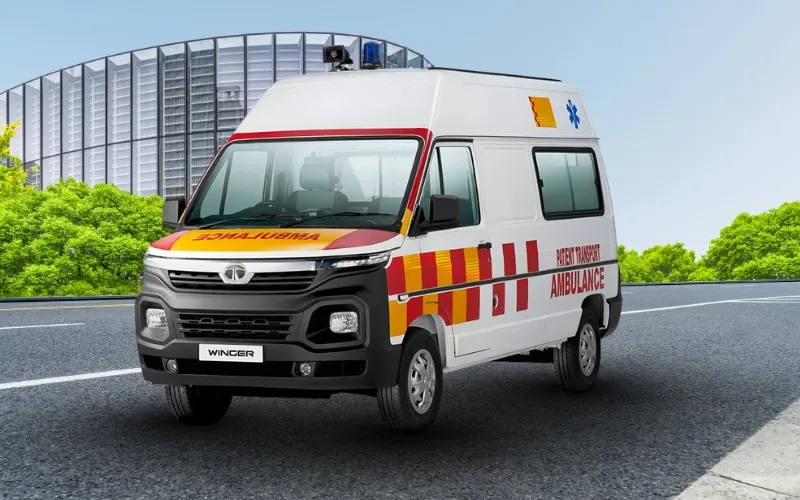

Winger FL AMB B 3200 7 Plus P BS6
Rs. 15.00 – 17.00 Lakh
Specifications & Features
Specifications
Features
Dimensions and weight
• Wheelbase: 3200 mm
• Overall length: 4940 mm
• Overall width: 1950 mm
• Overall height: 2670 mm
• Ground clearance: 185 mm
• GVW: 3033 kg
• Seating capacity: 7 + Patient
• Overall length: 4940 mm
• Overall width: 1950 mm
• Overall height: 2670 mm
• Ground clearance: 185 mm
• GVW: 3033 kg
• Seating capacity: 7 + Patient
Engine and transmission
• Engine type: 2.2L DICOR Diesel, BS6 compliant
• Engine displacement: 2179 cc
• Max output: 73.5 kW @ 3750 rpm
• Max torque: 200 Nm @ 1000–3500 rpm
• Gearbox: 5 forward + 1 reverse, manual synchromesh
• Clutch: 215 mm single plate, dry friction, semi‑hydraulic actuation
• Engine displacement: 2179 cc
• Max output: 73.5 kW @ 3750 rpm
• Max torque: 200 Nm @ 1000–3500 rpm
• Gearbox: 5 forward + 1 reverse, manual synchromesh
• Clutch: 215 mm single plate, dry friction, semi‑hydraulic actuation
Steering and brakes
• Steering: Power assisted rack & pinion
• Front brakes: Disc brakes with twin pot calliper
• Rear brakes: Drum brakes
• Brake type: Hydraulic with vacuum booster
• ABS: Yes
• Front brakes: Disc brakes with twin pot calliper
• Rear brakes: Drum brakes
• Brake type: Hydraulic with vacuum booster
• ABS: Yes
Suspension and axles
• Front suspension: McPherson struts with coil spring
• Rear suspension: Parabolic leaf springs with hydraulic telescopic shock absorbers
• Anti‑roll bar: Front and rear
• Rear suspension: Parabolic leaf springs with hydraulic telescopic shock absorbers
• Anti‑roll bar: Front and rear
Tyres and electricals
• Tyres: 195 R15 LT
• Battery: 12 V, 80 Ah
• Battery: 12 V, 80 Ah
Winger FL AMB B 3200 7 Plus P BS6 Comparison with Similar Vans
| Model |
 Tata Motors Magic Ambulance |
 Tata Motors Magic Express |
 Tata Motors Magic Mantra |
 Tata Motors Winger Plus |
|---|---|---|---|---|
| Rating | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews | 4.5 ⭐ 100+ Reviews |
| Price Range | 7.00 – 9.00 Lakh | 6.00 – 8.00 Lakh | 6.00 – 8.00 Lakh | 13.00 – 15.00 Lakh |
| Fuel Type | Petrol | Diesel | Diesel | Diesel |
| Model Year | 2025 | 2025 | 2025 | 2025 |
| Vehicle Type | New | New | New | Luxury |
| Action | Compare | Compare | Compare | Compare |
