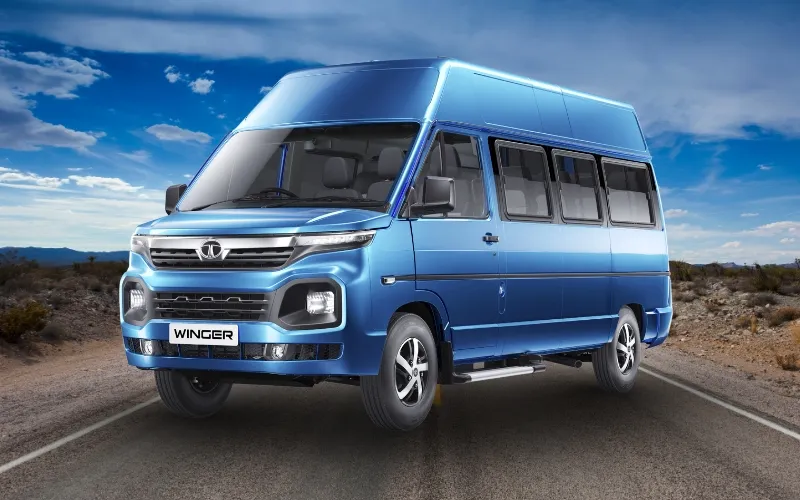

Winger FL 35 HR PAS 15S
Rs. 14.00 – 16.00 Lakh
Specifications & Features
Specifications
Features
Dimensions and weight
• Wheelbase: 3488 mm
• Overall length: 5478 mm
• Overall width: 1905 mm
• Overall height: 2670 mm
• Ground clearance: 180 mm
• Seating capacity: 15 + Driver
• Fuel tank capacity: 60 L
• Turning circle diameter: 13.6 m
• Overall length: 5478 mm
• Overall width: 1905 mm
• Overall height: 2670 mm
• Ground clearance: 180 mm
• Seating capacity: 15 + Driver
• Fuel tank capacity: 60 L
• Turning circle diameter: 13.6 m
Engine and transmission
• Engine make: Tata Motors Limited
• Engine model: VARICOR 11
• Engine type: Compression ignition diesel engine
• Cylinders: 4
• Engine displacement: 2179 cc
• Max output: 74.8 kW @ 3750 rpm
• Max torque: 200 Nm @ 1000–3500 rpm
• Clutch type: Dry, single plate
• Gearbox: Synchromesh, 5 forward + 1 reverse
• Steering: Rack & pinion, power steering
• Engine model: VARICOR 11
• Engine type: Compression ignition diesel engine
• Cylinders: 4
• Engine displacement: 2179 cc
• Max output: 74.8 kW @ 3750 rpm
• Max torque: 200 Nm @ 1000–3500 rpm
• Clutch type: Dry, single plate
• Gearbox: Synchromesh, 5 forward + 1 reverse
• Steering: Rack & pinion, power steering
Suspension and axles
• Front suspension: McPherson strut with coil spring
• Rear suspension: Parabolic leaf spring
• Anti‑roll bar: Optional (front and rear)
• Shock absorbers: McPherson strut (front, 2 nos), double‑acting hydraulic telescopic (rear, 2 nos)
• Rear suspension: Parabolic leaf spring
• Anti‑roll bar: Optional (front and rear)
• Shock absorbers: McPherson strut (front, 2 nos), double‑acting hydraulic telescopic (rear, 2 nos)
Brakes and tyres
• Service brake: Vacuum assisted hydraulic dual circuit with tandem master cylinder, automatic wear adjuster at rear
• ABS: Yes
• Front brakes: Disc
• Rear brakes: Drum
• Tyres: LT 195 R15 8PR (front and rear)
• ABS: Yes
• Front brakes: Disc
• Rear brakes: Drum
• Tyres: LT 195 R15 8PR (front and rear)
Electricals
• System voltage: 12 V
• Battery rating: 65–80 Ah
• Battery rating: 65–80 Ah
